VAPE Ignition - KTM 546 - 90 DC

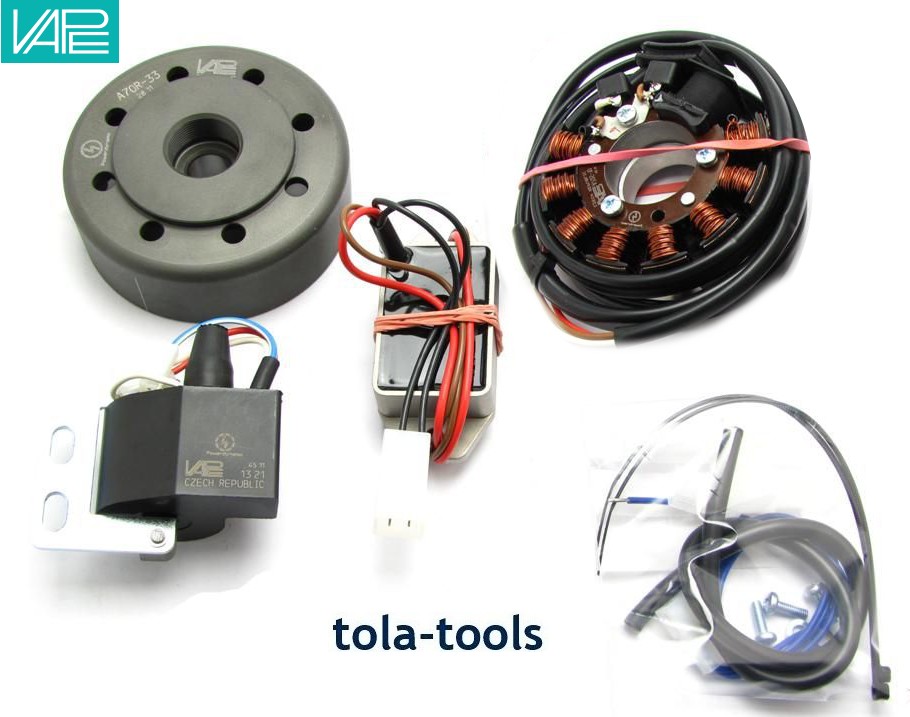

electronic ignition system for engine KTM 546 - 90 DC

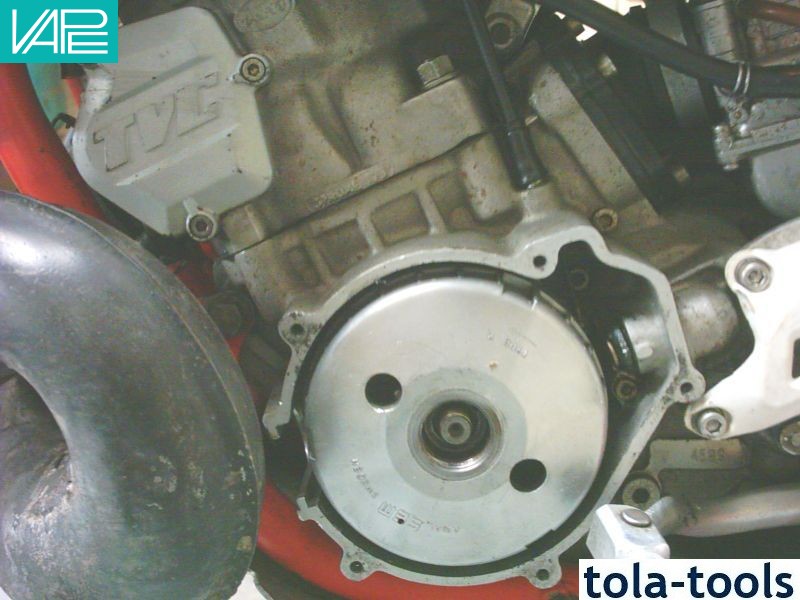

Generator / electronic ignition for 2 stroke KTM type 546 with 90 mm baseplate, fitted on LH side of engine.

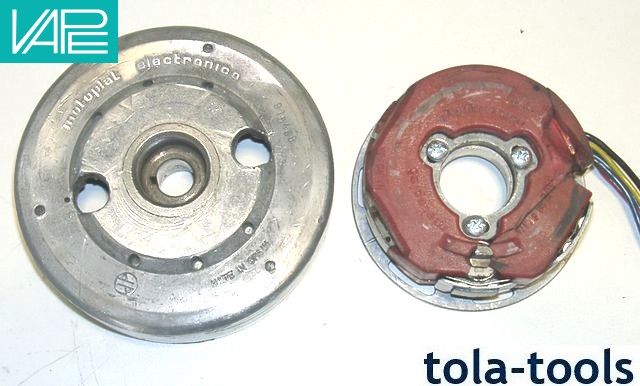

Integrated solid state ignition, light output 12V/100W DC. Replaces original Motoplat magneto or SEM system. Does not require any modifications on engine housing.

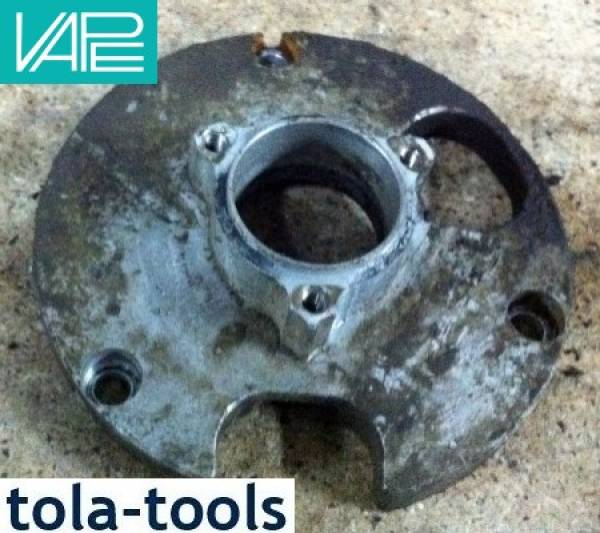

Note: for KTM 546 with a 110 mm baseplate use this system.


Advantages:

• all parts are new
• more light output
• very stable ignition with solid spark
• high energy CDI spark

Technical Infos for KTM 2-stroke Bikes with engine 546 - 90

	Wiring Diagram DC

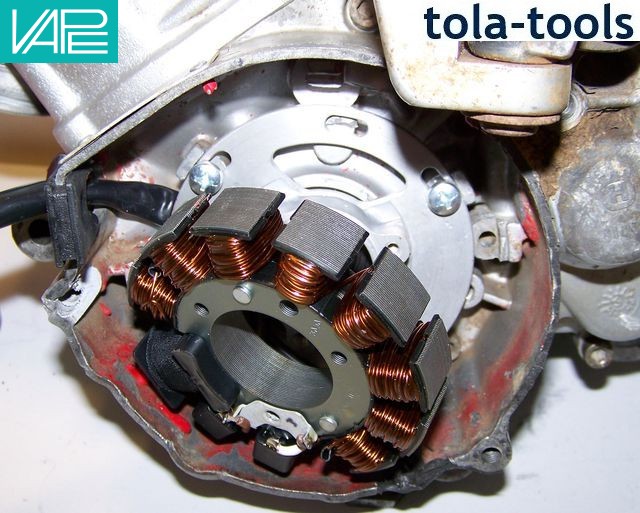

	Installation tips DC
