VAPE Ignition - KTM 546 547 556 DC

electronic ignition system for engine KTM 546 547 556

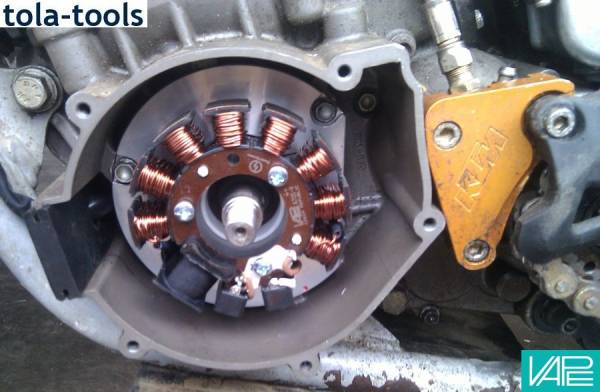

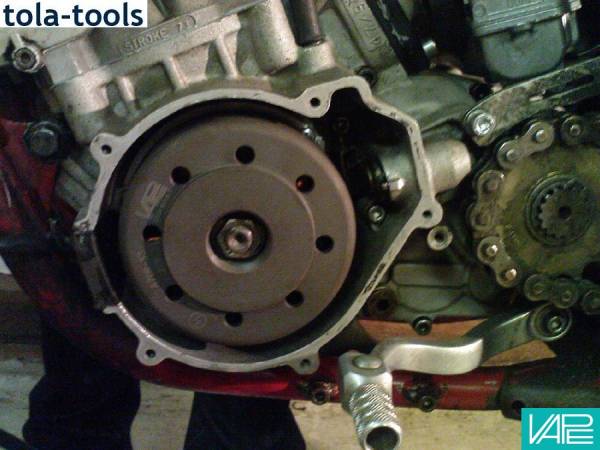

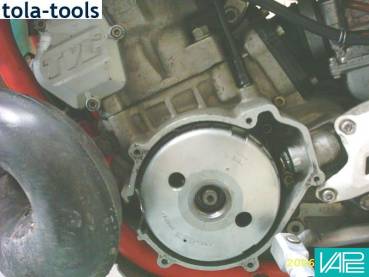

Generator / electronic ignition for 2 stroke KTM type 546, 547, 556 with 110mm baseplate, fitted on LH side of engine.

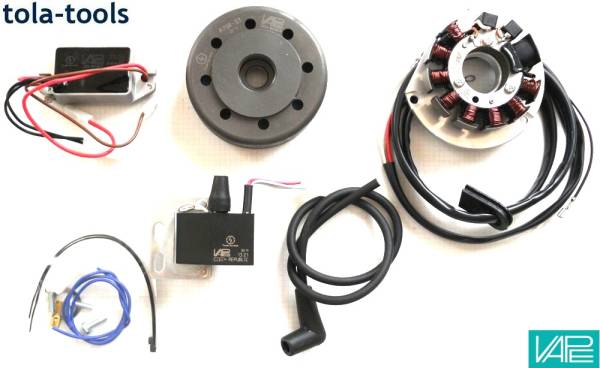

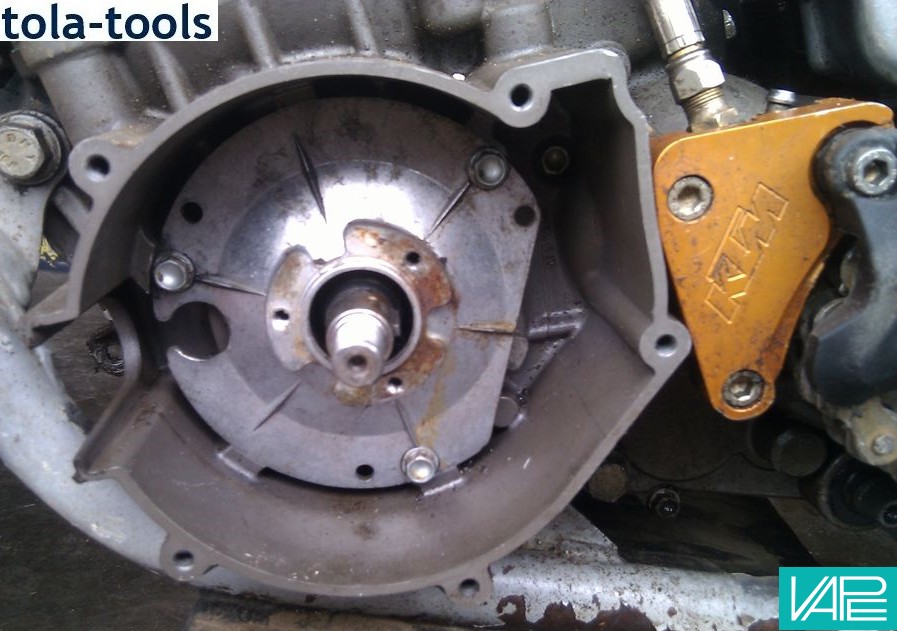

Integrated solid state ignition, light output 12V/100W DC. Replaces original Magneto as well as all ignition parts. Does not require any modifications on crankcase.

Note: KTM 546 has also been delivered with a 90mm baseplate! This system does NOT fit there...


Advantages:

• all parts are new
• more light output
• very stable ignition with solid spark
• high energy CDI spark

Technical Infos for KTM 2-stroke Bikes with engine 546 547 556

	Wiring Diagram DC

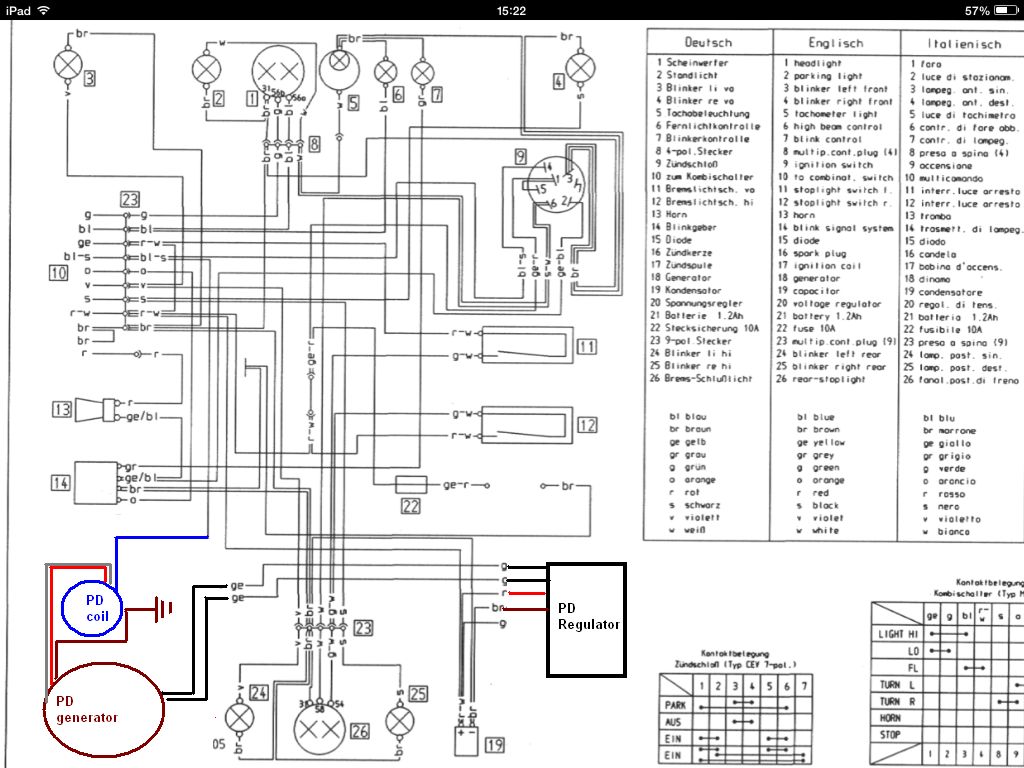

	Wiring diagram original and VAPE
	Installation tips DC
