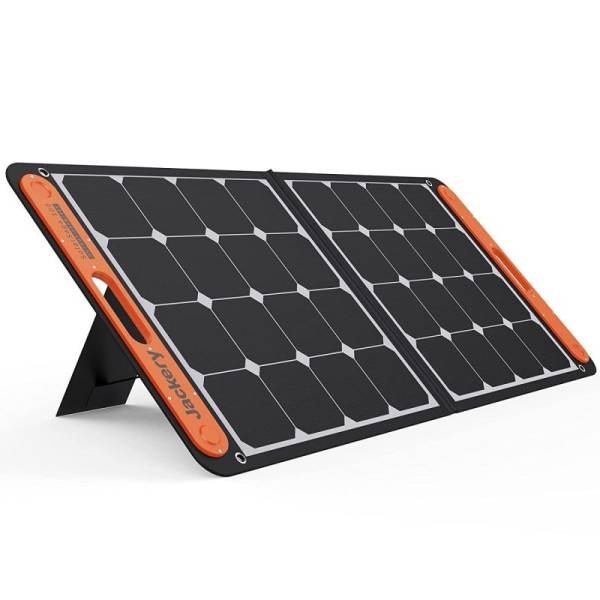

Jackery SolarSaga 100W Solar Panel
SolarSaga 100 monocrystalline solar panel for self-sufficient power supply on the go
Perfect for jackety explorersThe environmentally friendly solar system is the ideal generator for the Jackery Explorer 240/500/1000 power stations (sold separately).
In combination, this results in the perfect power supply for on the go, the ideal solution for self-sufficient camping or unexpected power failures.
High efficiency
The high-efficiency monocrystalline solar cells achieve a conversion efficiency of 23%.

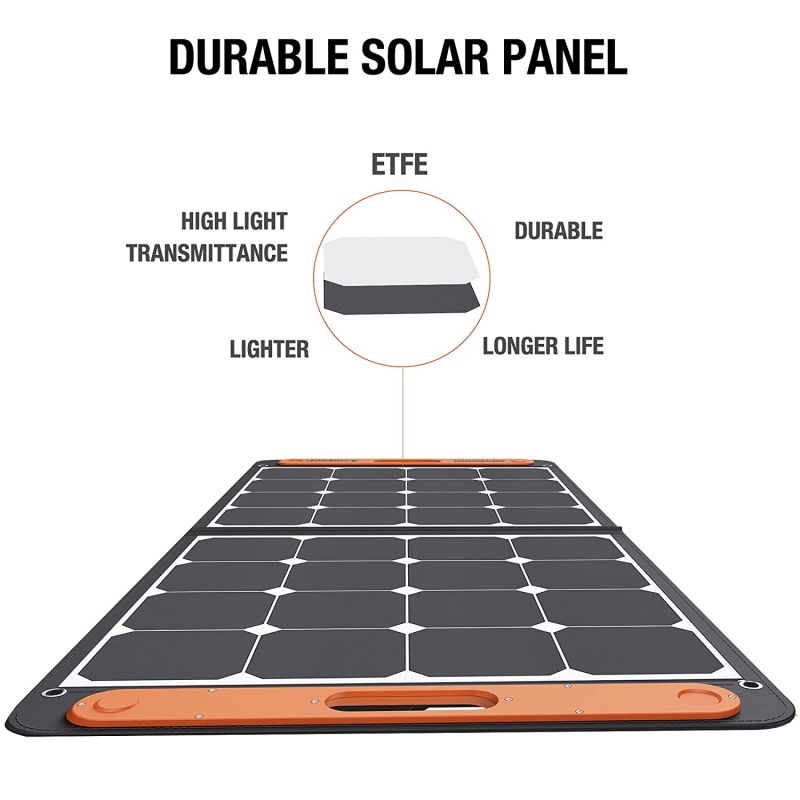

Durable ETFE material on the surface ensures long service life, high light transmission, weather resistance with low weight.
With an integrated pocket on the back to store & protect the cable and connectors. Shockproof & Dustproof.
Convenient, safe, reliable

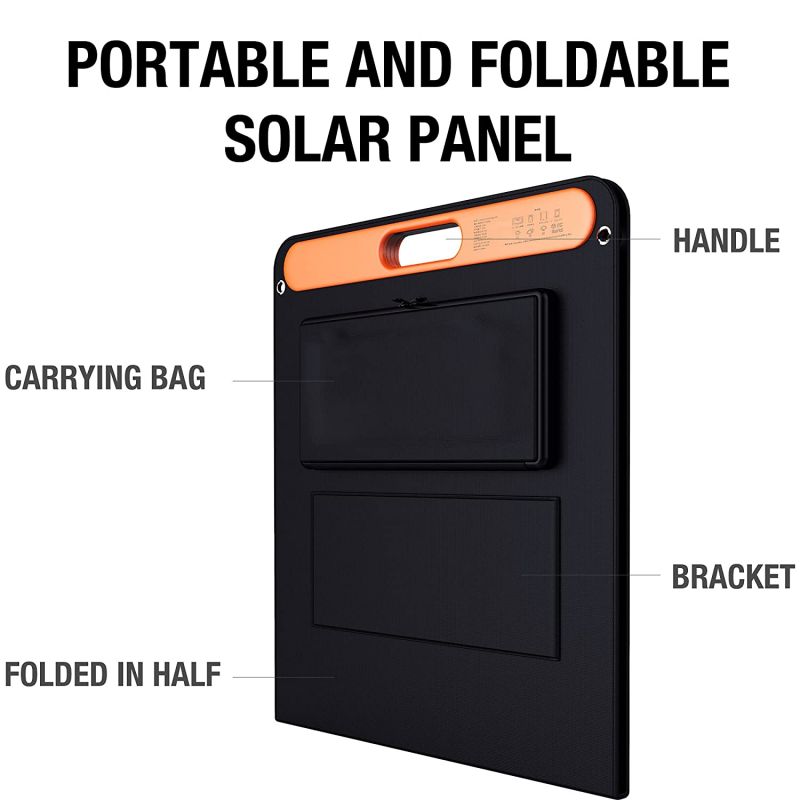

Foldable design for easy portability. Compact and lightweight, rubber handle for comfortable carrying.
Two adjustable stands for easy installation or angle adjustment.

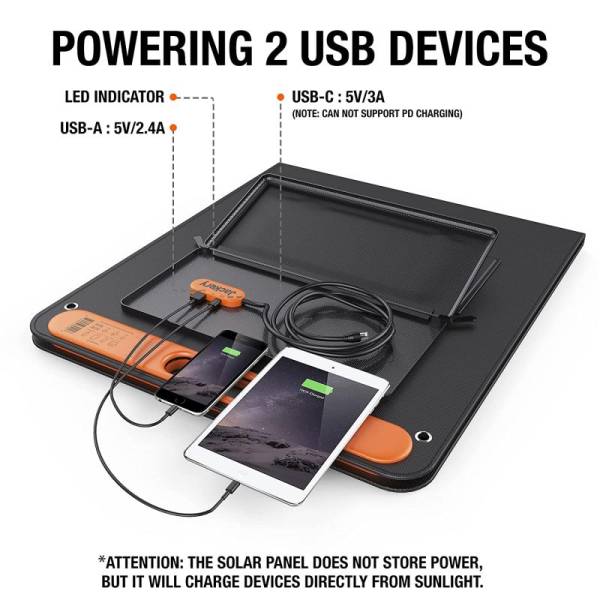

Equipped with 1 USB-A (5V, 2.4A) and 1 USB-C port (5V, 3A), for charging smartphone, tablet and camera.
Technical Data
- Peak power: 100W
- Cell efficiency: 23%
- Power voltage: 18V
- Current: 5,55A
- Open circuit voltage: 21,6V
- Short circuit current: 6A
- USB-A Out: 5V, 2,4A
- USB-C Out: 5V, 3A
- Weight: 4,69 kgs

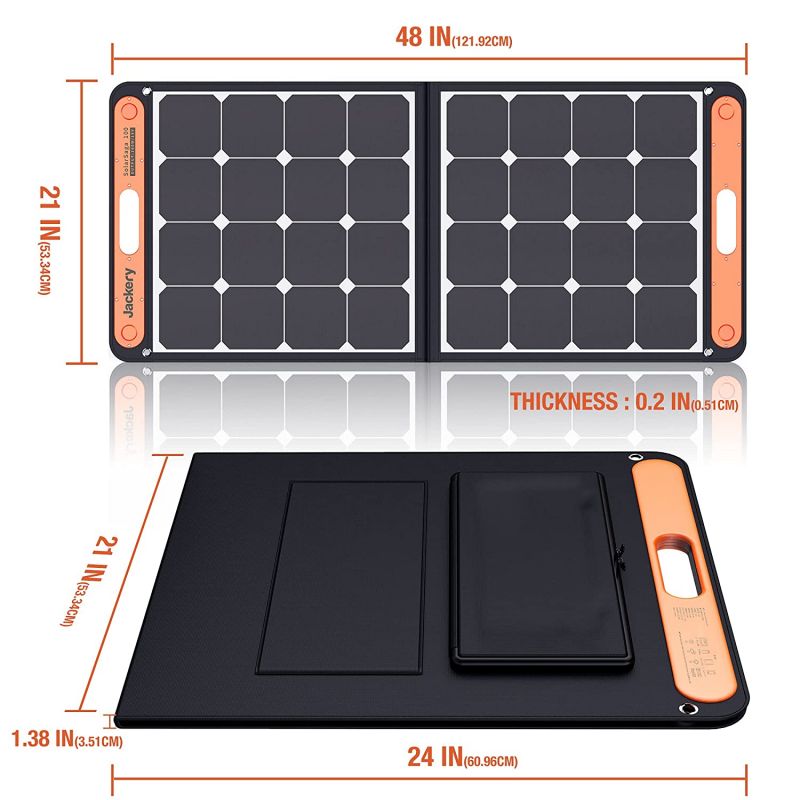

- Dimensions (folded): 610 x 535 x 35 mm
- Dimensions (unfolded): 1220 x 535 x 5 mm
- Operating Temperatures: -10 to 65℃

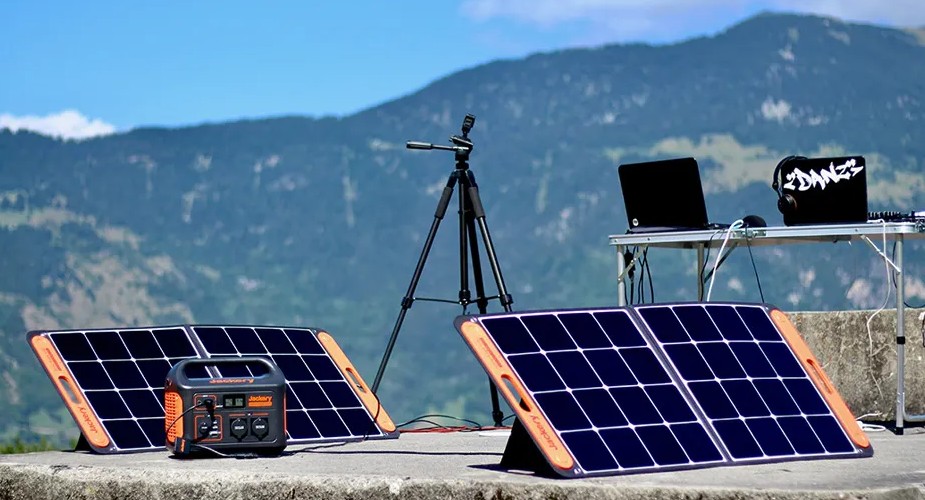

Jackery solar generator for self-sufficient camping
Off-Grid solar generator as a clean power supply- Two SolarSaga 100 for Explorer 1000
Two SolarSaga 100 solar panels can quickly charge the Explorer 1000 (not included) within 8 hours,
by connecting them together with a SolarSaga Y-parallel cable (supplied with the Explorer 1000).
by connecting them together with a SolarSaga Y-parallel cable (supplied with the Explorer 1000).

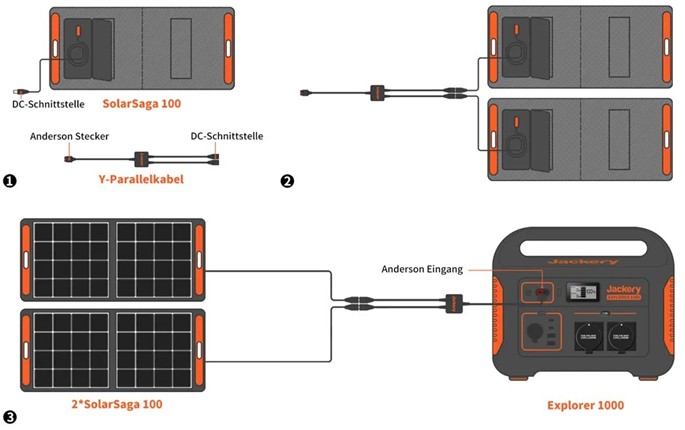

Steps for solar charging:
1. Find the DC port on the back of the SolarSaga 100;
2. Connect the DC interfaces of 2* SolarSaga 100 with the Y parallel cable;
3. Connect the Y-parallel cable to the Explorer 1000's Anderson input.

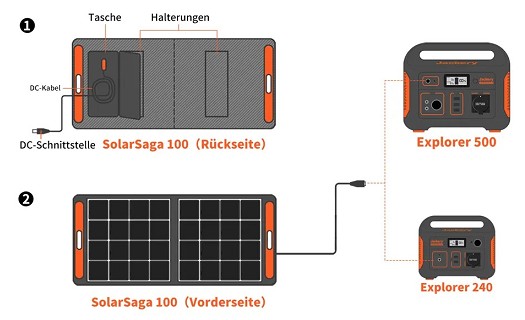

- One SolarSaga 100 for Explorer 500/240
The SolarSaga 100 solar panel can quickly charge the Explorer 500/240 (not included) within 9.5/5.5 hours.
Steps for solar charging:
1. Find the DC port on the back of the SolarSaga 100;
2. Connect the DC interface to the DC input of the Explorer 500/240.
Notes on solar charging:
The charging time varies depending on the location, temperature, weather, etc. The actual charging time may differ from the information provided.
When charging, the power station should be kept away from heat and direct sunlight in order to extend its service life.
Delivery Content
- 1x Jackery SolarSaga 100 Solarpanel
- Manual
Shipping abroad only on request
(Image similar, subject to technical changes)
