electronic ignition system for August Wurring - Düsseldorf / AWD SZ252 with ILO M2 x 125 (Twin)

Magnet based generator with integrated ignition. Output at 12V/150W DC. Solid state ignition with own power supply from within the system. Replaces old Noris MLZSn dynamo, points, centrifugal governor, ignition coils.
No modifications on engine housing necessary. The system is technically capable of running without battery. The system uses an electronic twin coil to be fixed outside engine. Equally regulator has to be fixed outside engine.

all parts are new
very stable ignition with solid spark
better starting, better fuel burning
no wear anymore on points

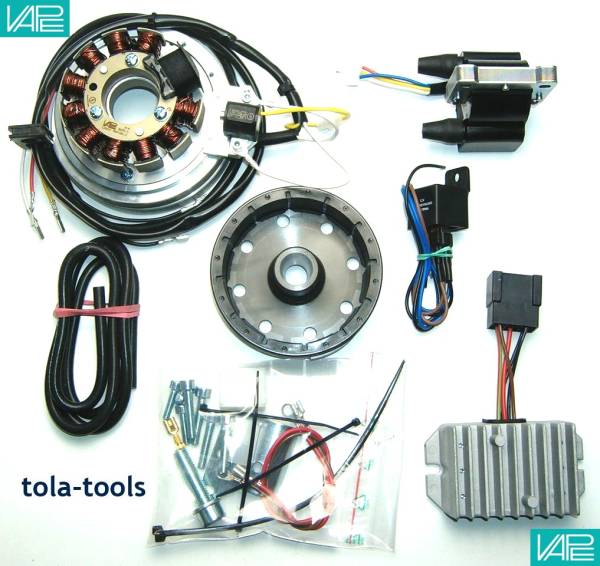

Content: ignition system, installation manual, wiring diagram
(images similar, variations possible)

An original VAPE/Powerdynamo product

Technical Data for VAPE ignition ILO M2 x 125 Twin

	Wiring diagram
	Installation tips
