VAPE Ignition Simson Habicht SR 4-4

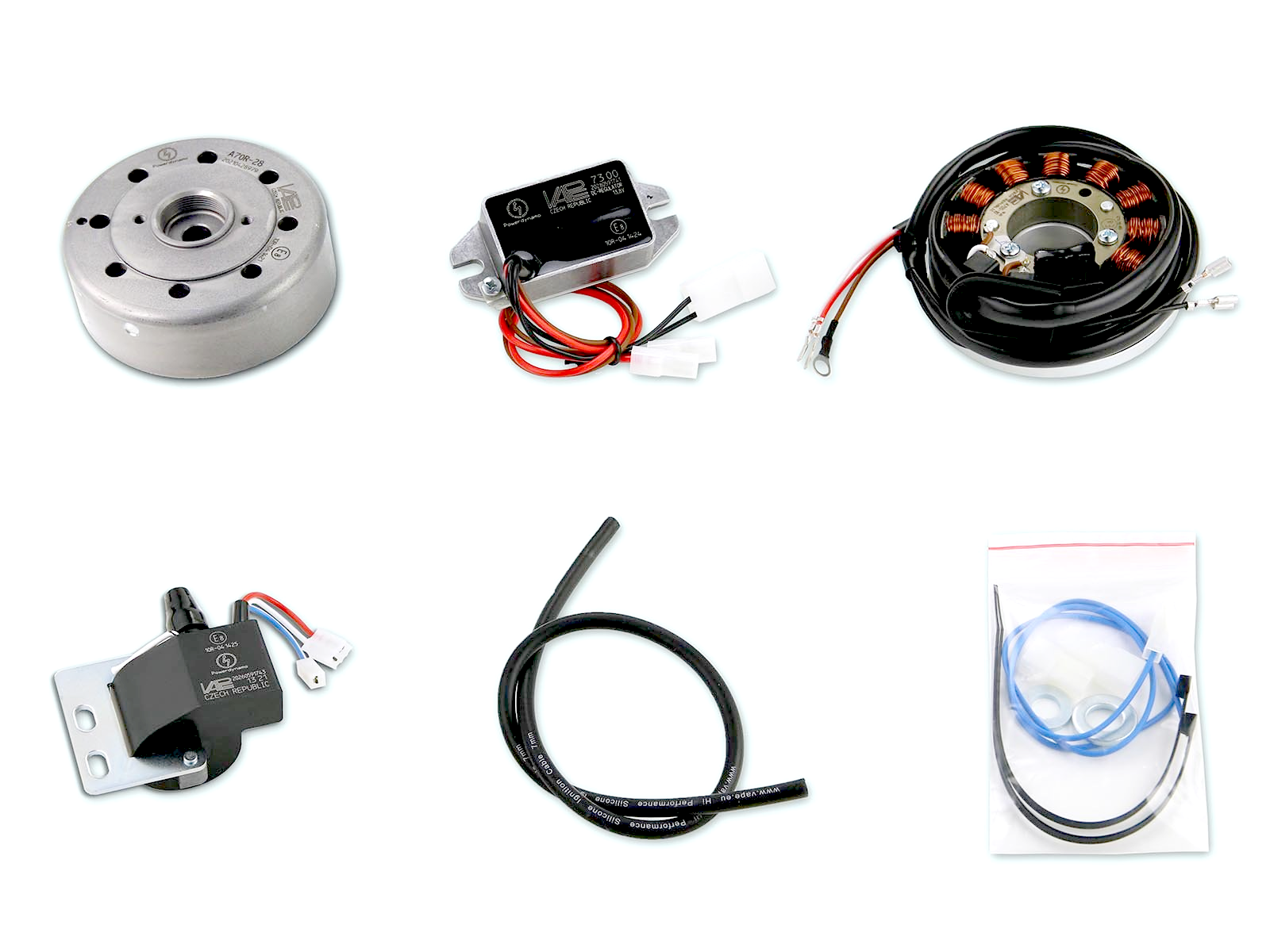

VAPE ignition for Simson Habicht SR 4-4
- Replacement system for ignitions where base plate is fixed by screws (not clamped), years 1971 - 1975.
- Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Replaces original 6 Volt Dynamo.
- Installs into original recess of engine without need for change there. Solid state ignition with own power supply from within the system.
- Your bike drives then only with DC, the complicated AC/DC-mixture will be omitted.
- No need for changes on engine housing. The system may be run without battery.
Notes:
- The vehicle system then only has direct current and no longer the complicated direct and alternating current mix. The stop light and tail light no longer switch.
- The fan wheel is not included in our set. The original fan or a corresponding replica is screwed onto the rotor.
- Early KR51 and SR4-2 had a different ignition system (rotor with a different cone). The replacement system 76 76 799 for this is no longer available.

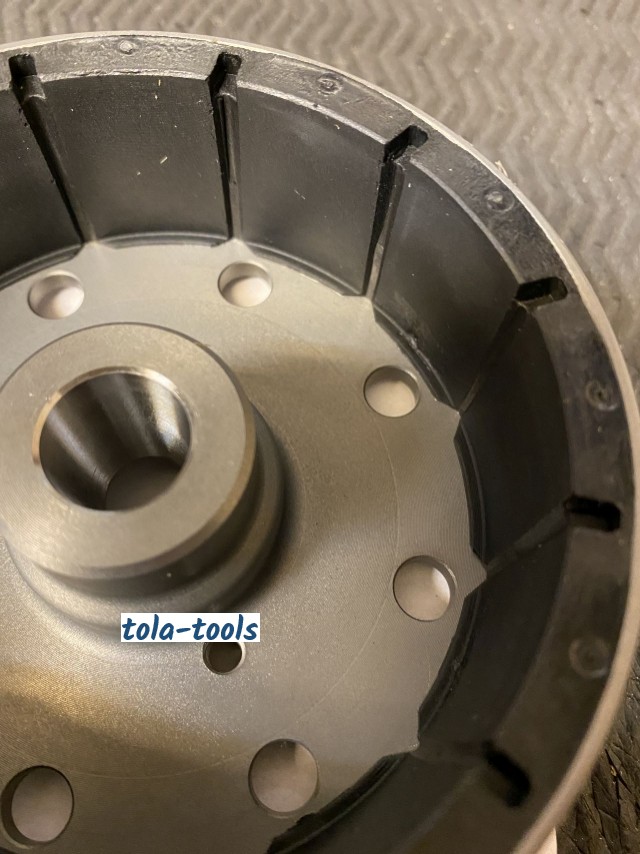

- Magnets glued and cast.
Advantages:
- all parts are new
- more light output
- very stable ignition with solid spark
- better starting, better fuel burning
- no wear anymore on points

An original VAPE/Powerdynamo product

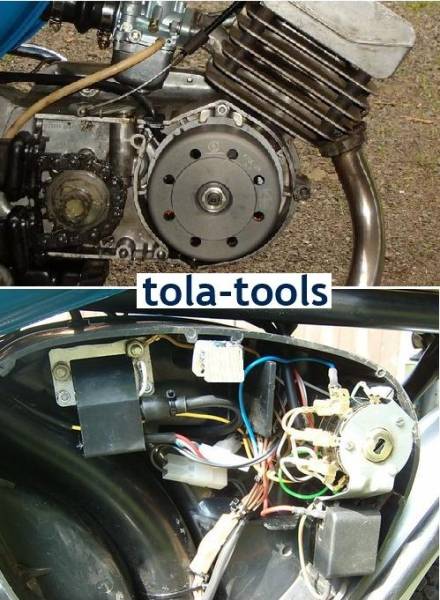

(photos similar, installation proposals)
Technical Data for VAPE ignition for Simson Habicht SR 4-4
| |

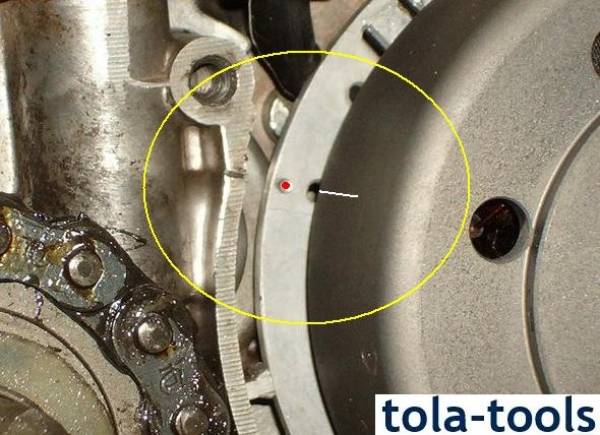

| Installation tips |
Manufacturer: VAPE spol. s r.o. | Address: Bílanská 1647/34a, CZ-76701 Kroměříž | Contact: vape@vape.cz
