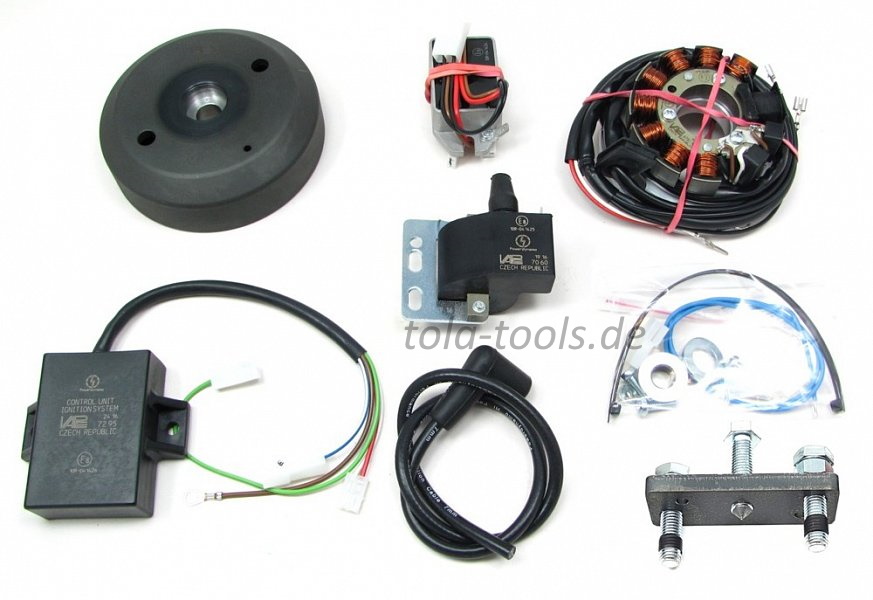

electronic ignition system for Motobi 175 / 250 Sport, Cone 4°17´(1:6.66), with seal cover
Magnet based generator with integrated fully electronic ignition. Output at 12V/180W DC.
Solid state ignition with own power supply from within the system. Completely replaces old magneto system. System may be run without battery
Ignition advance is effected fully electronically and follows the characteristics of the original centrifugal governor. You have a choice of different advance characteristics.

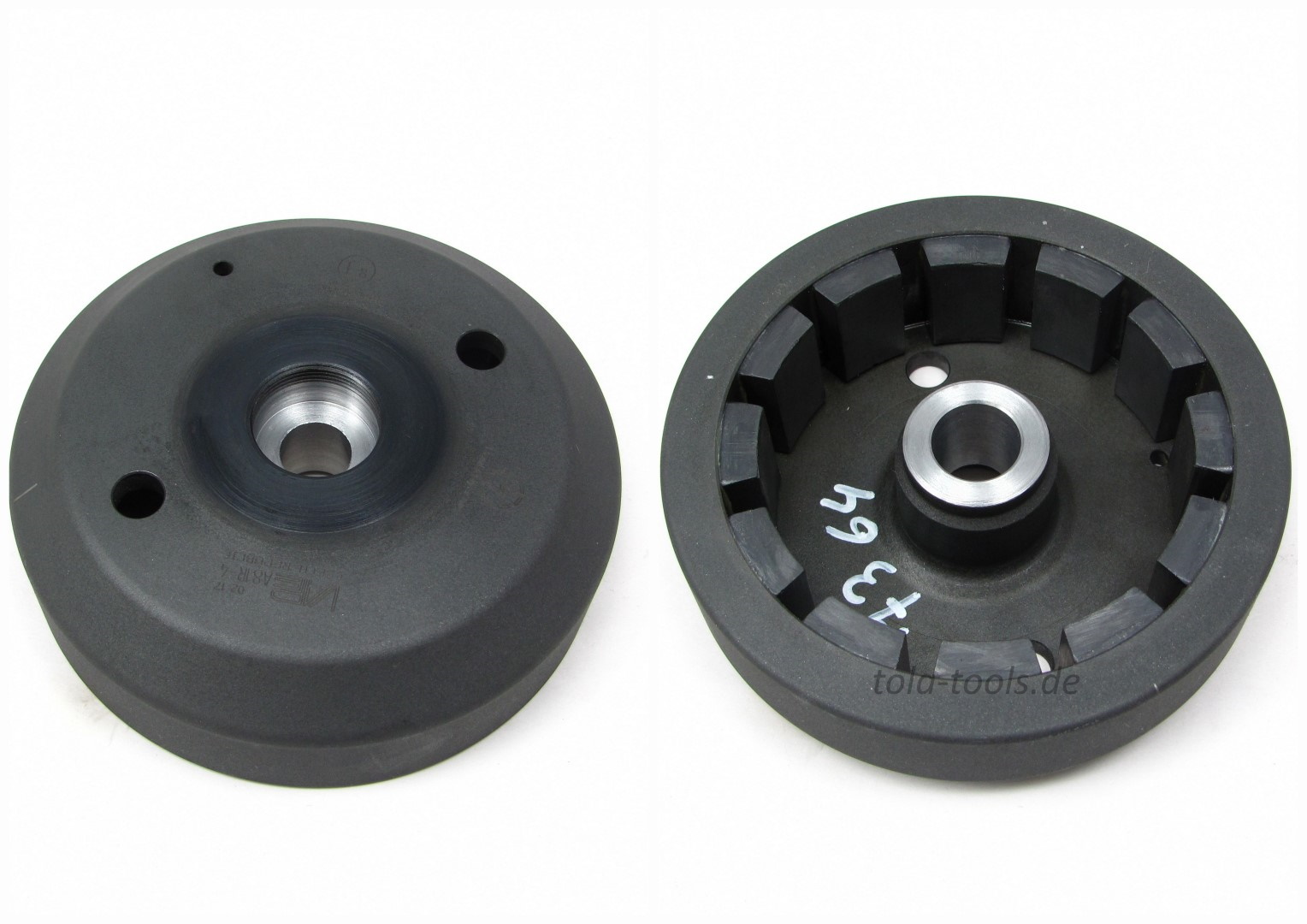

For better starting properties of the Motobi this version has a modified rotor (now: 1.8kg / 128mm diameter / 180W - previously: 0.7kg / 103mm diameter / 100W).
Note:

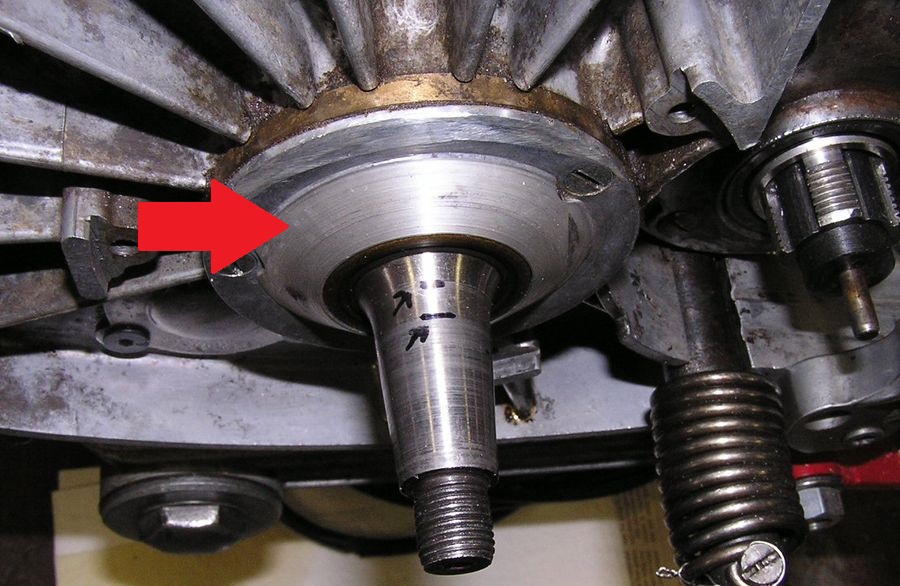

Please note that this system is for Motobi engines with high oilseal retainer only.
Our Systems for other Motobi engines will not fit those engines as will this system not fit those others.
What is better:
- all parts are new
- more light output
- very stable ignition with solid spark
- better starting, better fuel burning
- no wear anymore on points
An original VAPE/Powerdynamo product
Technical Data for VAPE ignition on Motobi 175 / 250 Sport, cone 4°17´(1:6.66)
 | |
| | Installation tips |
Security Advice:
