VAPE Ignition Motobi 125 175 250 Sport

electronic ignition system for Motobi 125 / 175 / 250 Sport Special, Cone 5°42 (1:5)

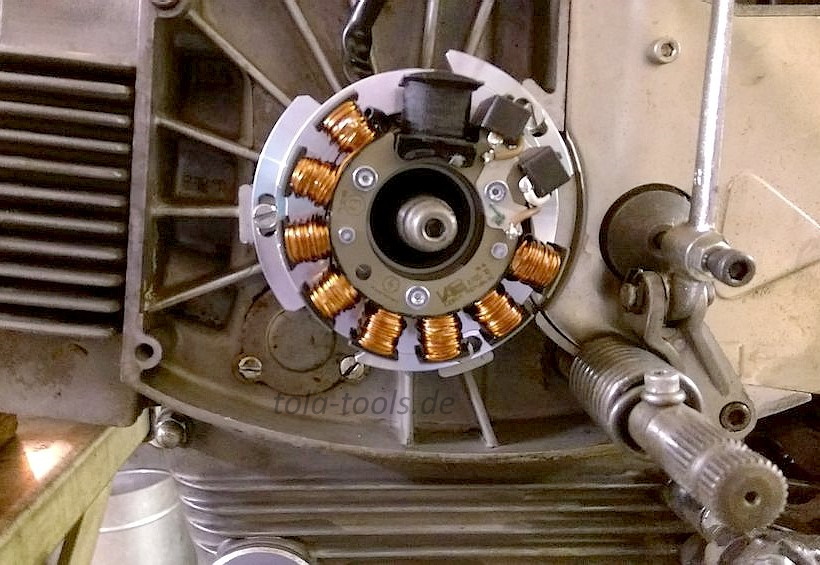

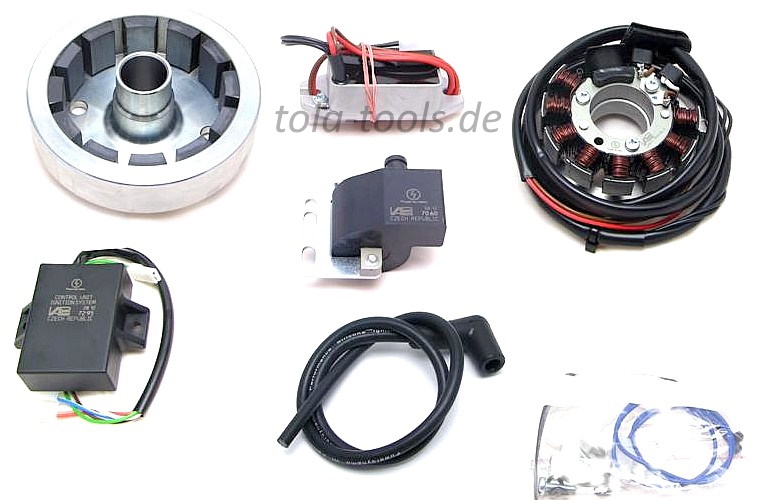

Magnet based generator with integrated fully electronic ignition. Output at 12V/180W DC.
Solid state ignition with own power supply from within the system. Completely replaces old magneto system. System may be run without battery
Ignition advance is effected fully electronically and follows the characteristics of the original centrifugal governor. You have a choice of different advance characteristics.

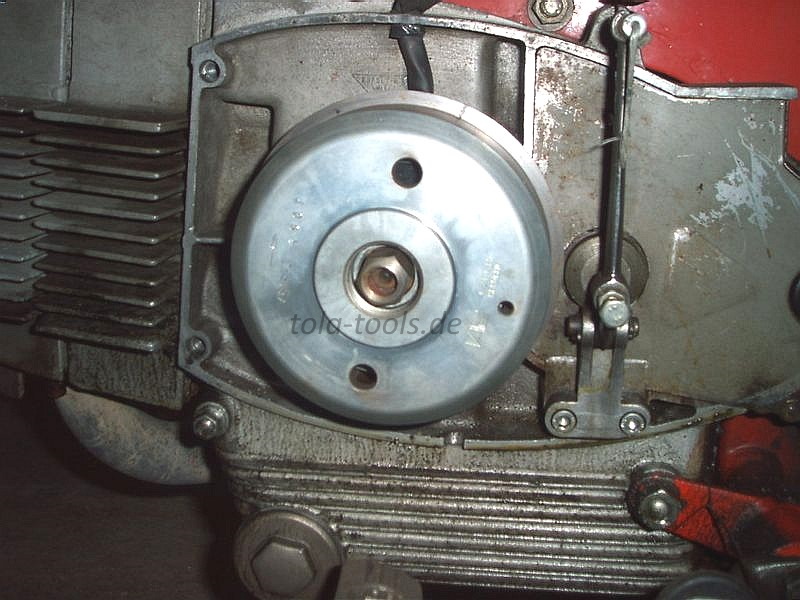

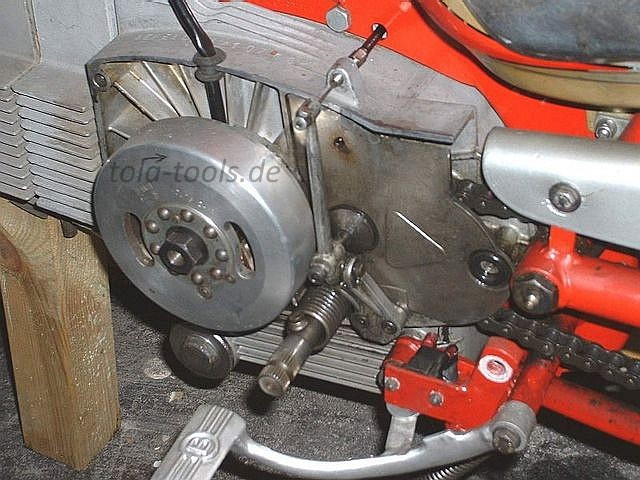

For better starting properties of the Motobi this version has a modified rotor (now: 1.8kg / 125mm diameter / 180W - previously: 0.7kg / 103mm diameter / 100W).
(This new rotor may not be used with the older 103mm systems!)


Note: for cone taper  4°17`(1:6.66) see system 73 58 999 00


What is better:

• all parts are new
• more light output
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points


Technical Data for VAPE ignition on Motobi 125 / 175 / 250 Sport Spezial, cone 5°42

	Wiring diagram
	Installation tips
