VAPE Ignition - KTM 546 547 556 AC

electronic ignition system for engine KTM 546 547 556

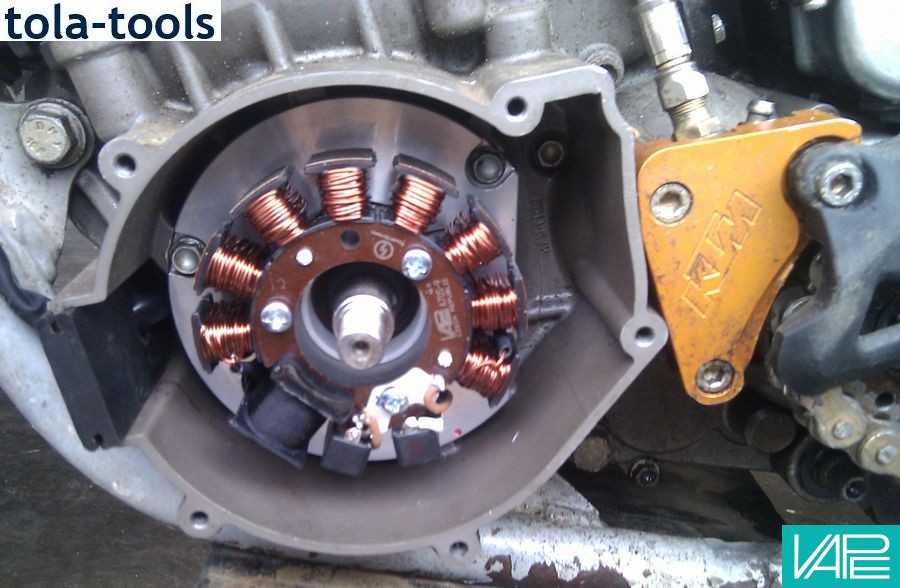

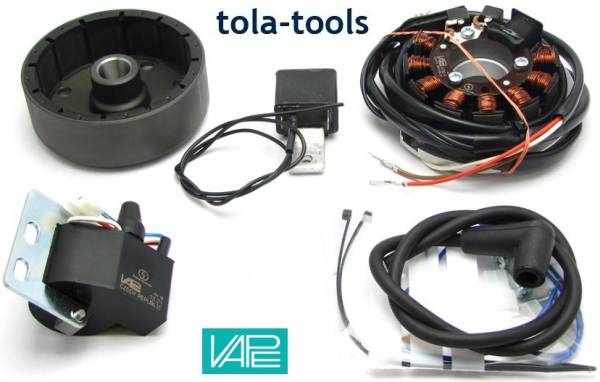

Generator / electronic ignition for 2 stroke KTM type 546, 547, 556 with 110mm baseplate, fitted on LH side of engine.
With integrated solid state ignition, light output 12V/100W AC.

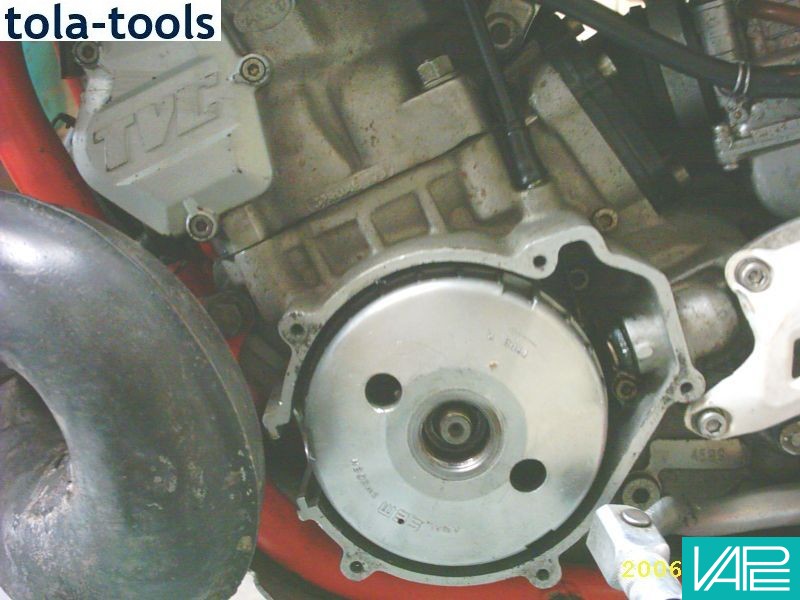

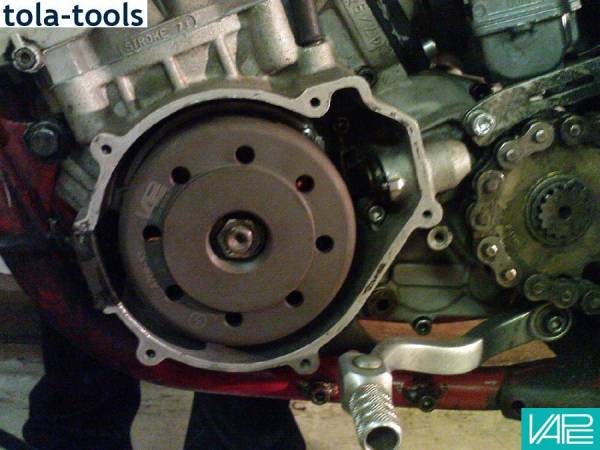

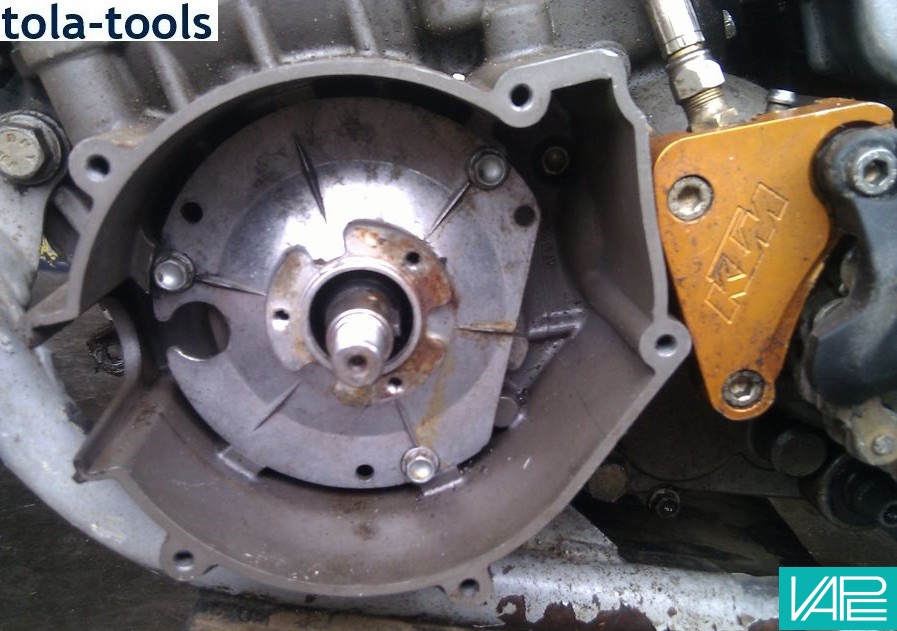

Replaces original Magneto as well as all ignition parts. Does not require any modifications on crankcase.

Note: KTM 546 has also been delivered with a 90mm baseplate! - This system does NOT fit there...


Advantages:

• all parts are new
• more light output
• very stable ignition with solid spark
• high energy CDI spark

Techical Infos for 2 stroke KTM engine types 546 - 547 - 556

	Wiring Diagram
	Wiring diagram original and VAPE
	Installation tips
