VAPE Ignition IFA MZ ES300

Electronic Ignition System for MZ ES300

Latest version of VAPE 12 Volt generator/electronic ignition for MZ ES 300 with internal sensor.
Magnet based generator with integrated fully electronic ignition, output 12V/180W DC.
Solid state ignition with own power supply from within the system.
Replaces old dynamo, points, condenser, ignition coil. There is no need for changes on engine casing.


Tech Tips:

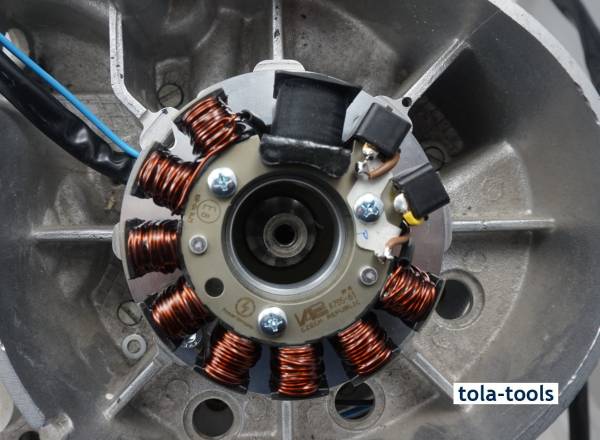

• the 4-speed engines need stator fastening screws M5x40, the 5-speed engine 5x30.
• The system comes with both sets of screws so that it can be used in both types.

What's better?

• all parts are new
• more light output
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points

Technical Data for VAPE ignition on MZ ES300

	Wiring diagram
	Wiring Diagram 2
	Installation tips
