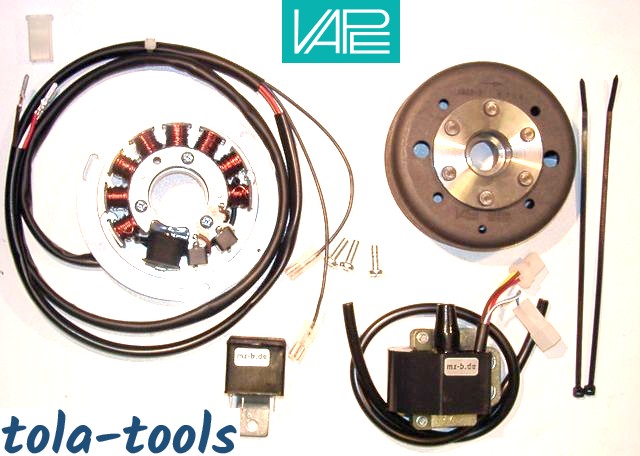

VAPE Ignition Hodaka 250 AC

electronic ignition system for Hodaka 250 AC

Magnet based generator with integrated fully electronic ignition, output at 12V: 70W AC.

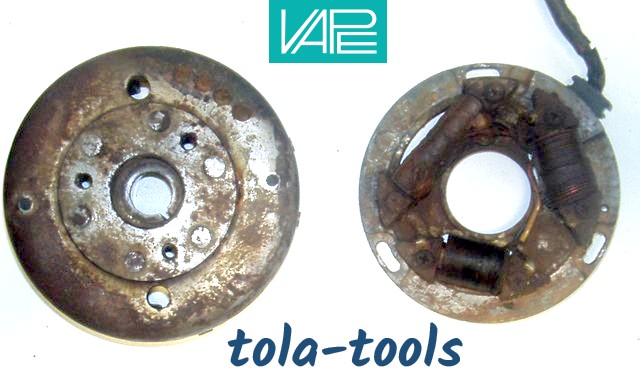

Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
There is no need for changes on engine housing.

Note:
- All AC systems are made for use in offroad sports and do neither support battery charging nor side indicators.
  Should you need side indicators and/or battery, ask for a DC version of the system.
- Don't worry about the pressed-in direction arrow on the rotor shows clockwise. The system is made for anti-clockwise running of the Hodoka.


What's new:

• all parts are new
• more light output
• very stable ignition with solid spark
• better starting, better fuel burning

Technical Data for VAPE ignition in Hodaka 250 AC

	Wiring diagram
	Installation tips
