VAPE Ignition Hodaka 125 / 100 Road Toad DC

electronic ignition system for Hodaka 125 / 100 Road Toad - DC

Magnet based generator with integrated fully electronic ignition, output at 12V: 100W DC.

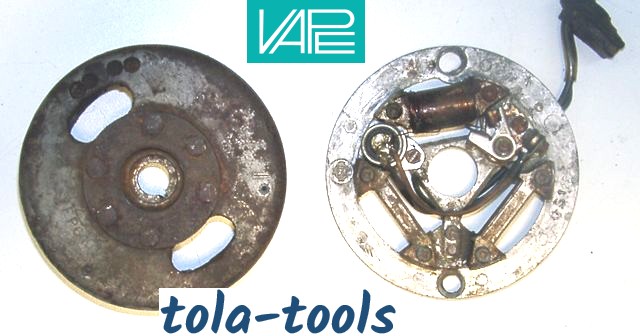

Solid state ignition with own power supply from within the system. Replaces old magneto, pickup, regulator and ignition coil.
There is no need for changes on engine housing.

Note:
- Don't worry about the pressed-in direction arrow on the rotor shows clockwise. The system is made for anti-clockwise running of the Hodoka.


What's new:

• all parts are new
• more light output
• very stable ignition with solid spark
• better starting, better fuel burning

Technical Data for VAPE ignition in Hodaka 125/100 Road Toad - DC

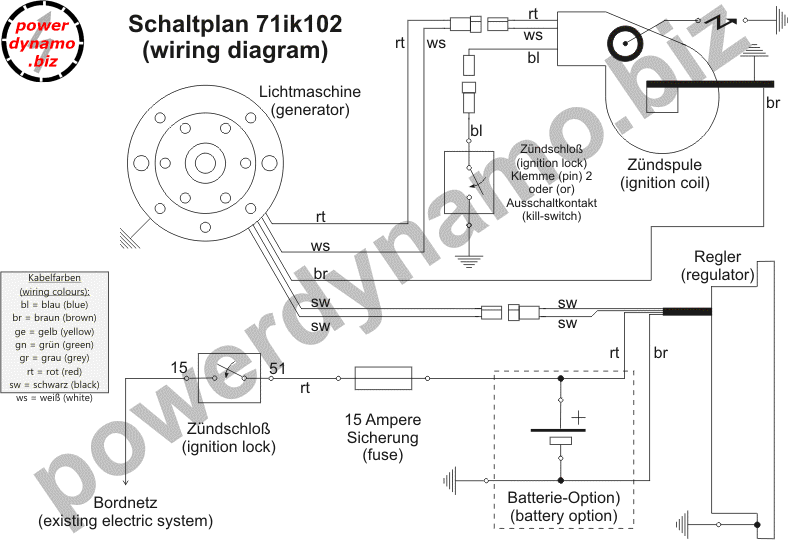

	Wiring diagram
	Installation tips
