Electronic Ignition for Simson Schwalbe

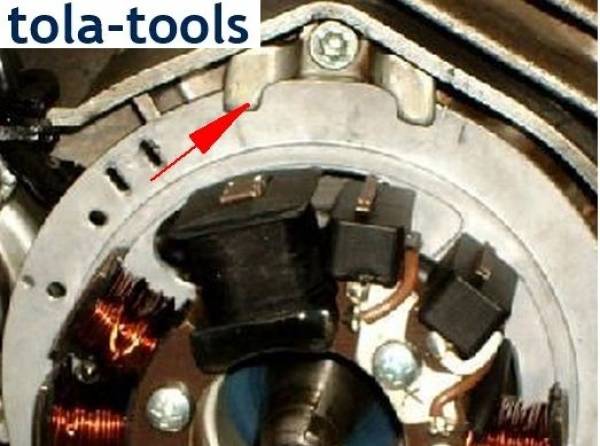

Replacement system for ignitions where base plate is fixed by clamps (not screwed).
For engines KR51/2, S50, S51, S70, SR50/1, S51/1, S70/1, SR80/1 (without E-Starter), years 1975 - 1990.

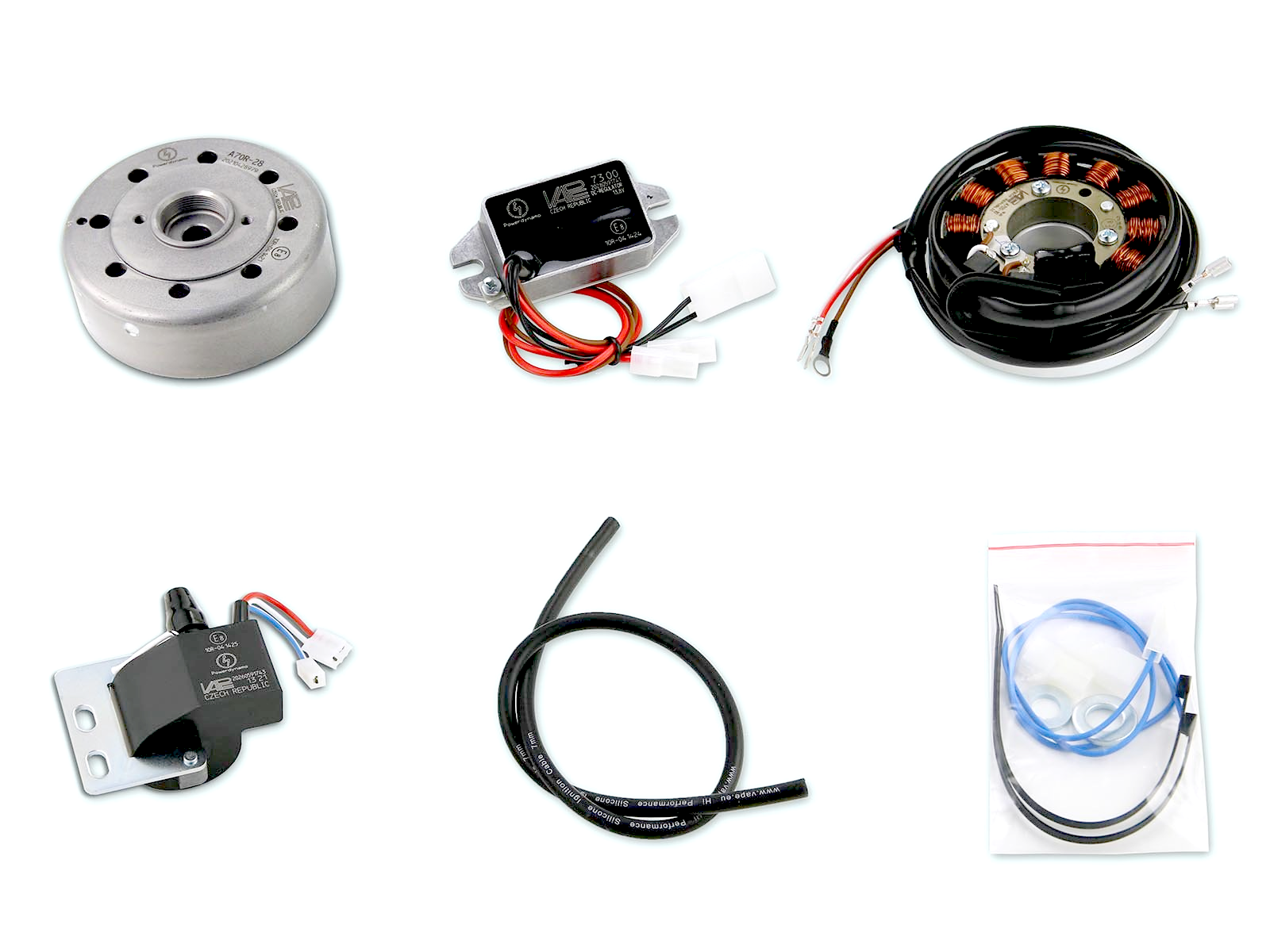

Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC. Replaces original 6 Volt Dynamo.

• Installs into original recess of engine without need for change there.
• Solid state ignition with own power supply from within the system.
• Your bike drives then only with DC, the complicated AC/DC-mixture will be omitted.
• No need for changes on engine housing. The system may be run without battery.

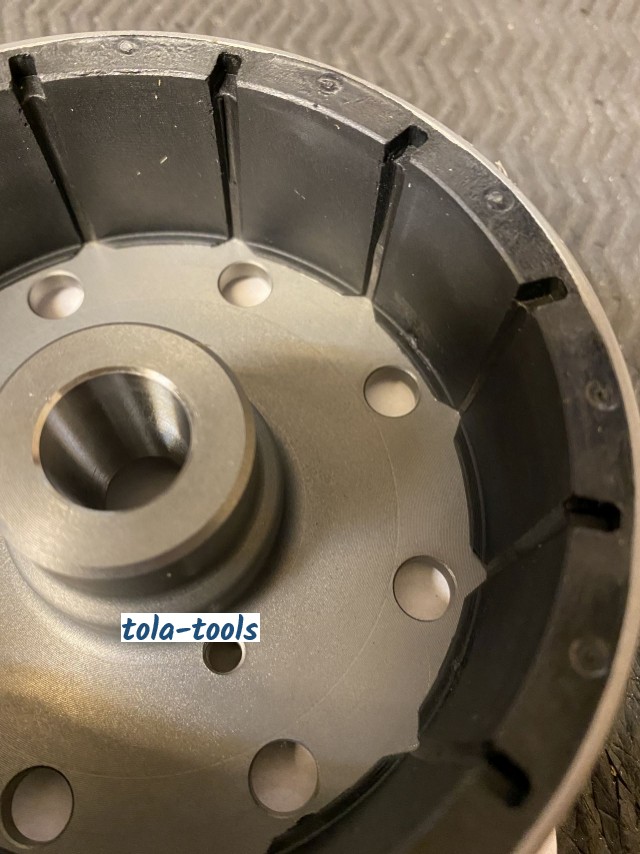

• Magnets glued and cast.

Advantages:

• all parts are new
• more light output
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points

Technical Data for VAPE ignition for Simson Schwalbe KR51/2 S50, S51, S70, SR50/1, S51/1, S70/1, SR80/1

	Wiring diagram
	Installation tips
