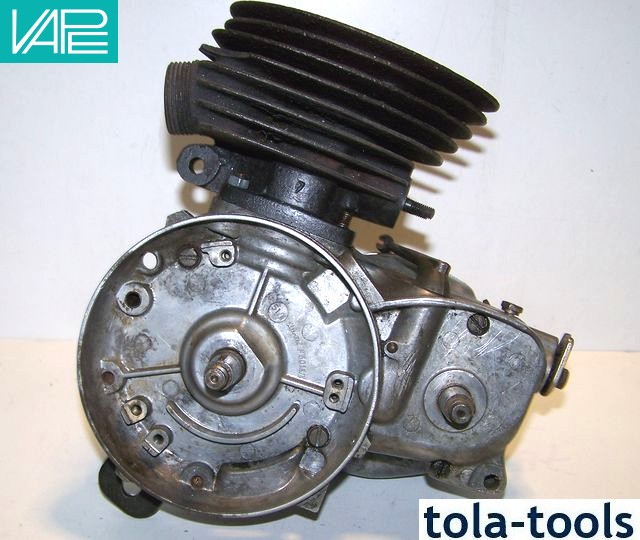

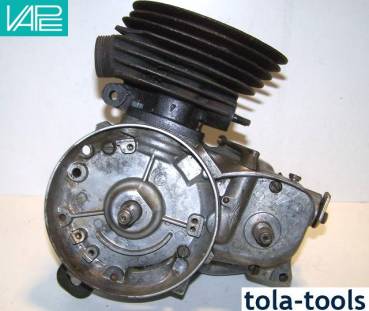

VAPE Electronic Ignition Sachs engine 98 - Model 32 6V/18W

electronic ignition system for Sachs engine 98 - Model 32
years 1933-43 and 1950-53, both pedal and kickstart

Magnet based generator with integrated ignition. Output at 6V/18W AC.
Solid state ignition with own power supply from within the system.
Replaces old dynamo, points, centrifugal governor, ignition coils.
No modifications on engine housing necessary.
The system is technically capable of running without battery.

Notes:

• does not fit on models with 41 mm cover height!
• Ignition coil and regulator/rectifier have to be installed outside the engine
• Rotor weight: 1.75 kg (original 2-Pole Rotor: 1.6 kg, 6-Pole Rotor: 1.95 kg)

Advantages of new system:

• all parts are new
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points

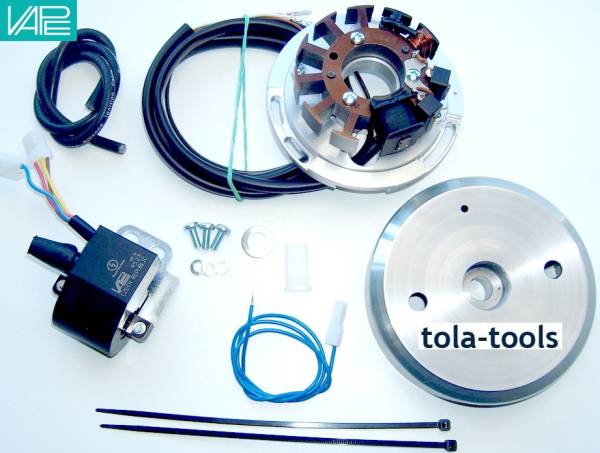

Content: ignition system, installation manual, wiring diagram



A Powerdynamo / VAPE product
(images similar, variations possible)



Technical Data for Sachs engine 98 - Model 32 - year 1933-43, 50-53 - VAPE ignition

	Wiring diagram
	Installation tips
	Info AC ignitions
