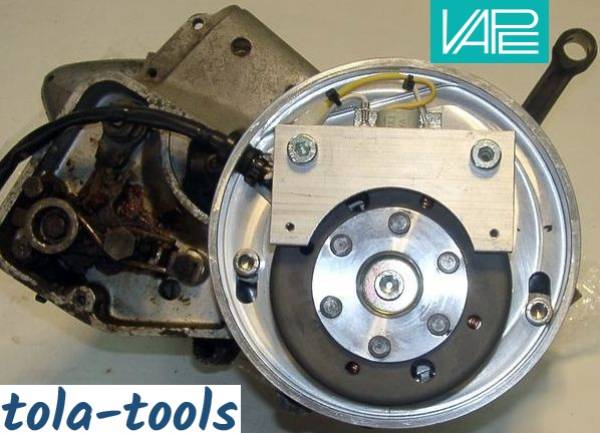

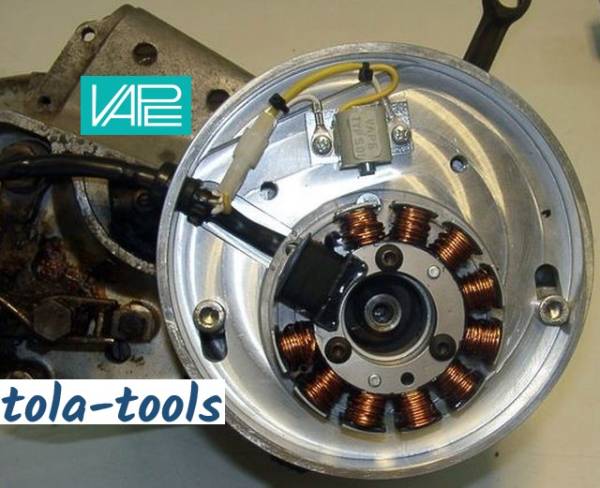

VAPE Electronic Ignition ILO FM 100 120

electronic ignition system for ILO FM 100 120

Magnet based generator with integrated fully electronic ignition. Output at 12V/100W DC.
Solid state electronic ignition with own power supply from within the system.

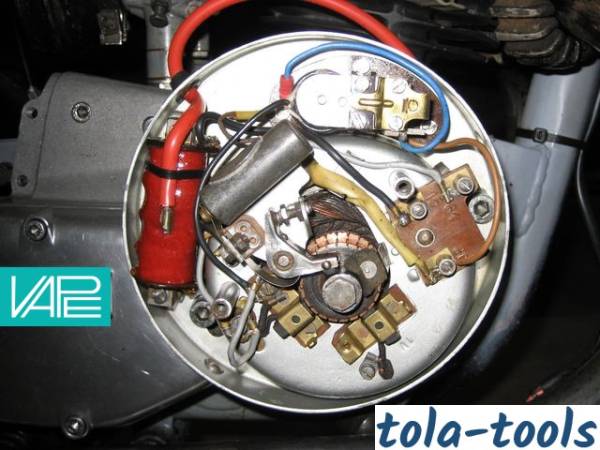

Replaces stock Bosch LMU dynamo, points, centrifugal governor.
No modifications on engine housing needed. May be driven without battery.



Whats new:

• all parts are new
• very stable ignition with solid spark
• better starting, better fuel burning
• no wear anymore on points

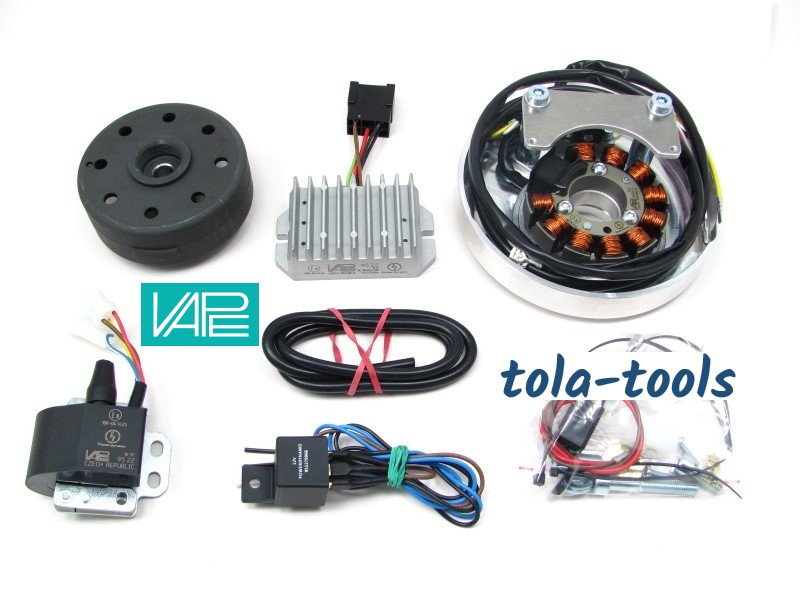

Content: ignition system, installation manual, wiring diagram



An original VAPE/Powerdynamo product



Technical Data VAPE Ignition on ILO FM 100 120

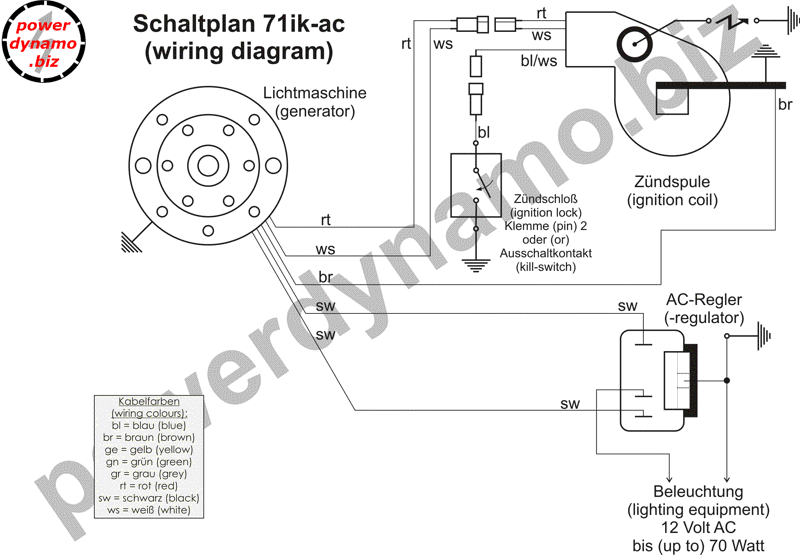

	Wiring diagram
	Installation tips
