123 TUNE BT Jaguar XK120 XK140 XK150

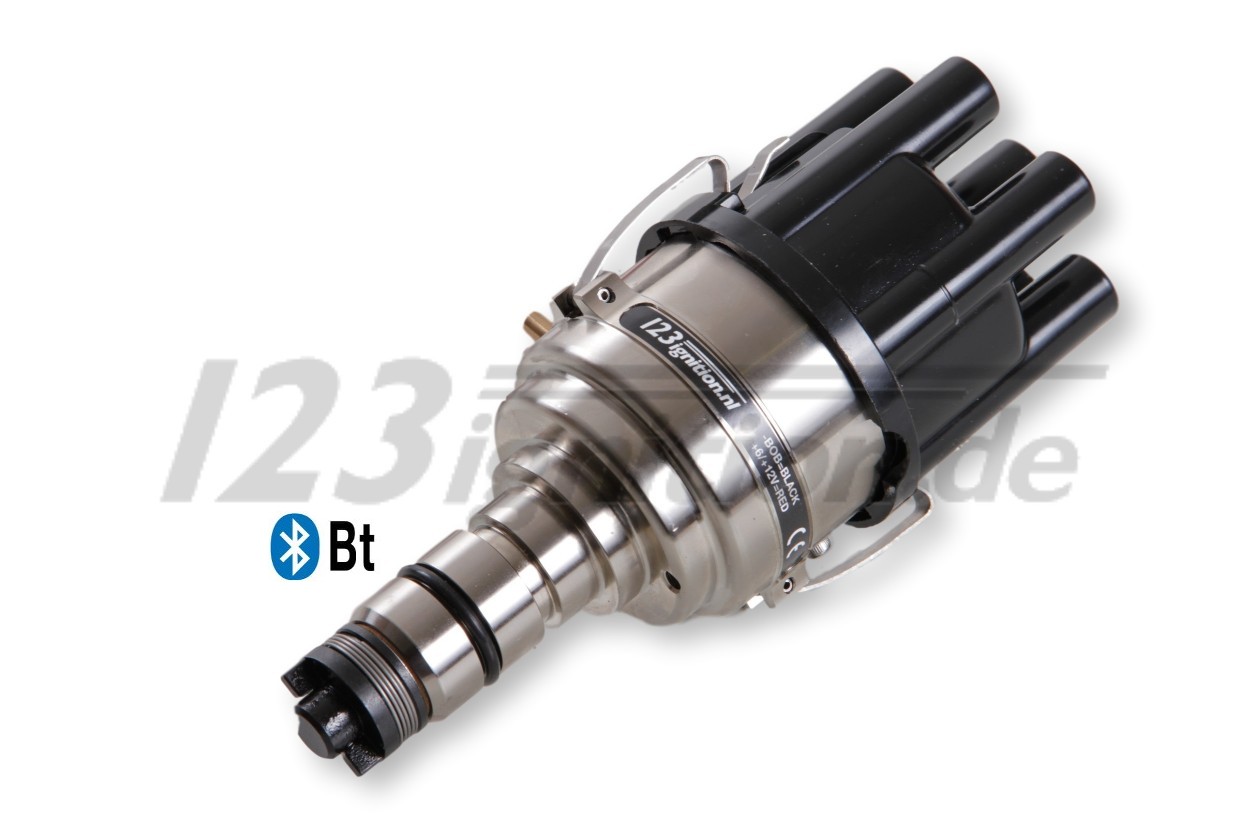

Programmable ignition distributor with Bluetooth® interface for Jaguar XK120 XK140 XK150

• Transmission of the ignition characteristics via Bluetooth® from a smartphone or tablet
• The associated software enables the creation/editing of freely programmable characteristics
• For standard engines or power-enhanced engines
• Ideal for racing and tuning...

Control your 123 TUNE+ with your iOS or Android smartphone or tablet via Bluetooth® 4.0.
The app allows you to adjust the ignition curve and displays an electronic dashboard








Special Features:

• Display of e.g. tachometer and other instruments
• Real-time tuning of the ignition adjustment or speed limit
• Switch off ignition = immobilizer / anti-theft device !



Tech Tip:
It is imperative to use an ignition coil with at least 1 ohm resistance in the primary circuit (between terminals 1 and 15).
Older ignition coils with lower resistance are not compatible with the 123ignition. This can lead to malfunction/total failure.

Ignition cables with a copper core are not suitable for use with the 123ignition ignition distributor and can cause malfunctions.
Matching high-performance ignition cables with a carbon fiber core, wrapped with fine stainless steel wire, ensure optimal function.



---

Recommended accessories, see also options above:






High-performance ignition cable set - individually configurable









High-performance Ignition Coil 40,000 Volt





123ignition Spark Plugs




Individual ignition curve, can be pre-installed with customer data

(Illustrations similar, technical changes reserved)

The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group)
