VAPE Ignition Adler M200 M250 MB200 MB250

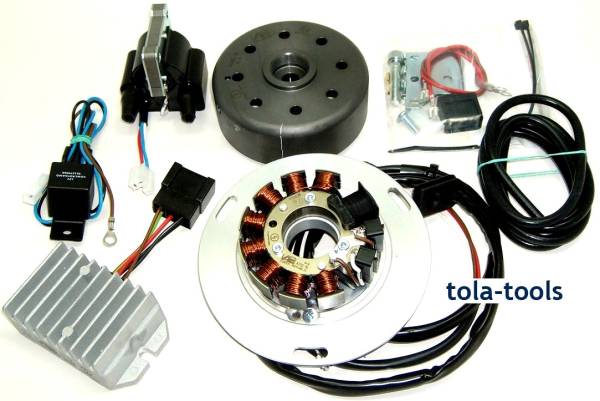

VAPE system for Adler M200/250 - MB200/250 - Favorit Sprinter Cross

Magnet based generator with integrated fully electronic ignition. Output at 12V/180W DC.
Solid state high energy condenser discharge ignition (CDI) with own power supply from within the system.
Replaces stock 6 Volt Dynamo Bosch LB/ZJ22 E45 or E60, points, centrifugal governor and ignition coils.
Installs into engine without need for change there. The system may be driven without a battery.
The system uses an electronic CDI twin coil.


Advantages:

• all parts are new
• very stable ignition with solid spark
• better starting, better fuel burning

Technical Data for VAPE ignition on Adler M200 / 250 - MB200 / 250

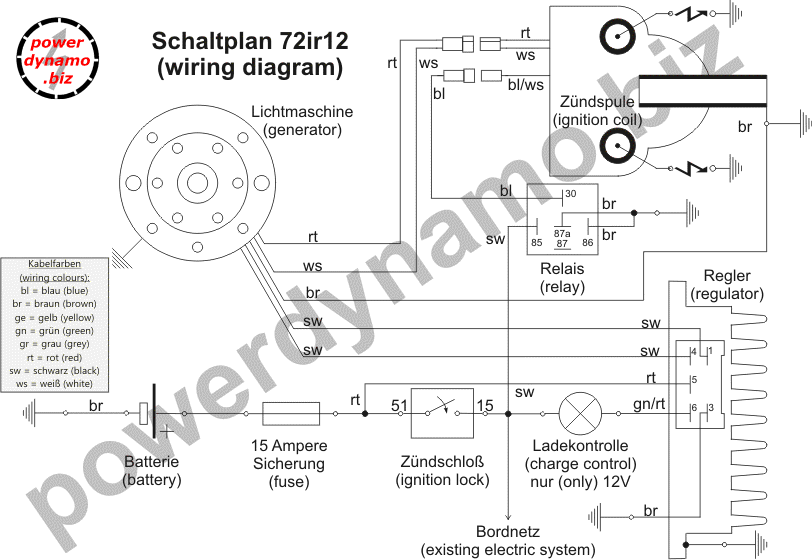

	Wiring Diagram

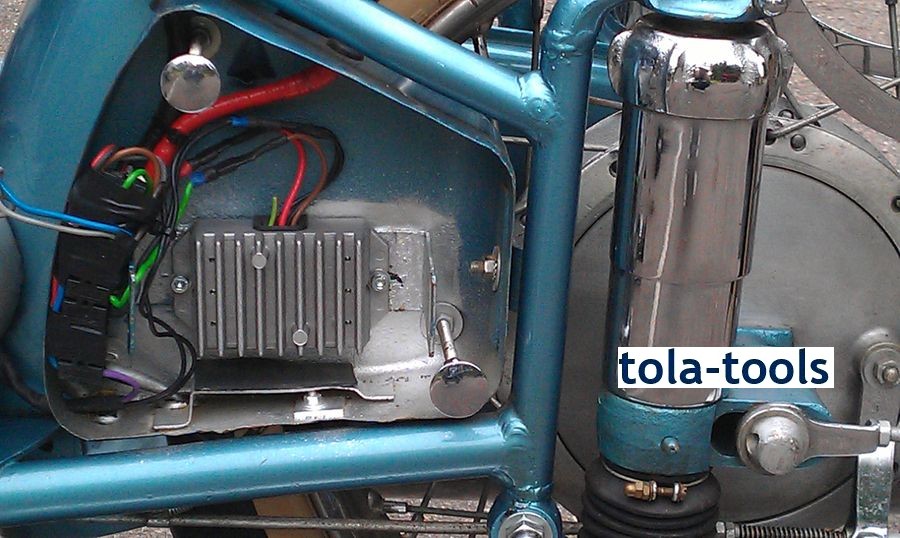

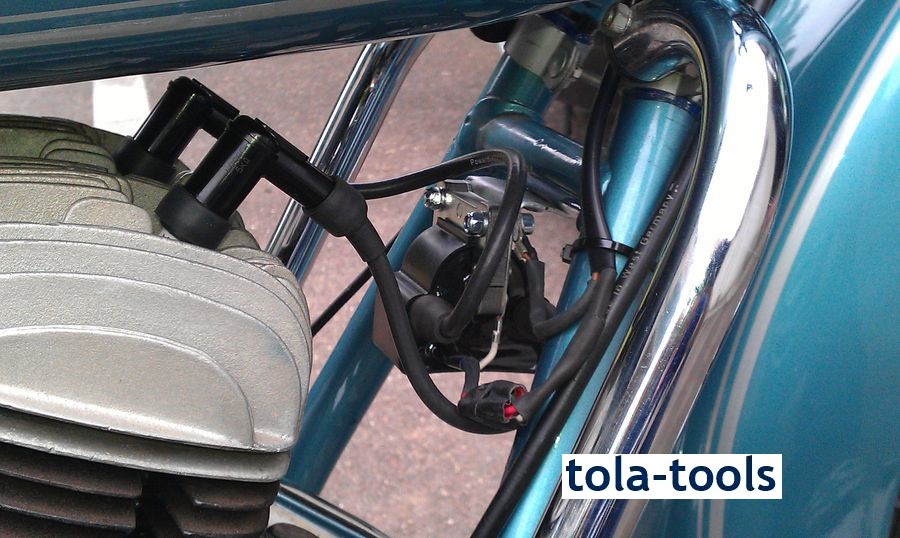

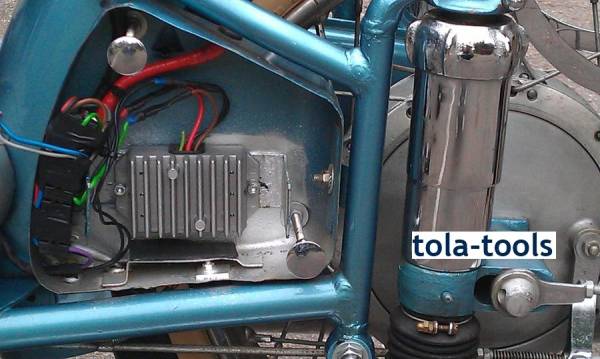

	Installation tips
